Meshtastic is an open-source project that uses LoRa radios to create encrypted, decentralized mesh networks.
It enables text and data communication without cellular, Wi-Fi, or internet infrastructure.

Meshtastic offers:

• 📡 LoRa Mesh communication without Wi-Fi, cellular, or Bluetooth.
• 🔐 Encryption for secure channels.
• 🌍 Community-driven networks for emergencies, experiments, and exploration.

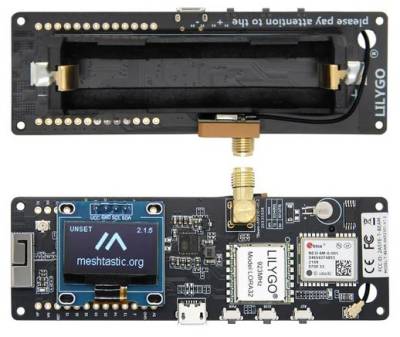

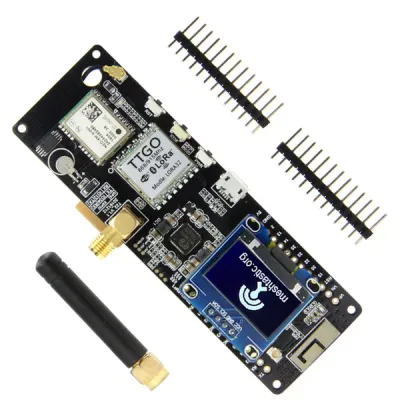

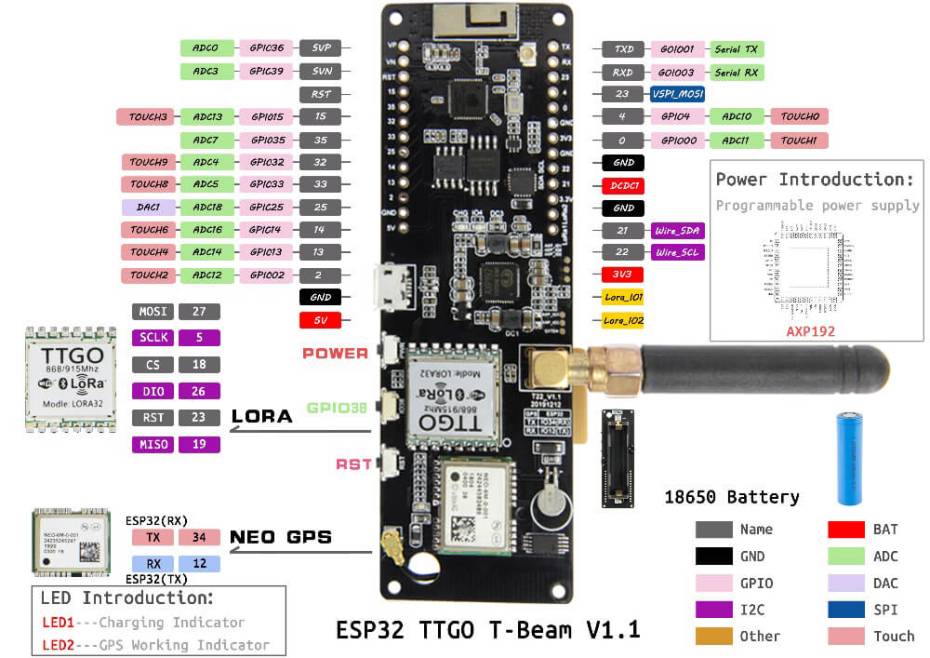

Model: LILYGO® TTGO Meshtastic T-Beam

Long Name: TaMi_H4cK3rSp4c3

Short Name: TaMi

Frequency: 919.375

Frequency Slot: 70

LoRa Preset: US/LongFast

MQTT Topic: msh/US/IL972

POSIX Time Zone: IST-2IDT,M3.4.4/26,M10.5.0

Node's Dynamic IP Address: [Redacted] - Check via physical node.

MCU: ESP32

Flash: 4MB

PSRAM: 8MB

Serial Chip: CH9102

Wireless protocol: Wi-Fi + Bluetooth 4.2

PMU: AXP2101

Onboard functions: 3 Buttons (Power+IO38+Reset)

3D WiFi Antenna [Use by default]

(Support WiFi IPEX external antenna, but you need to jump resistance)

LoRa antenna

GPS ceramic antenna

NE0-6M GPS Modules : Support GPS protocol

Onboard RTC crystal, Support interrupt/ wakeup

Long Range Low Power LoRa Transceiver

High sensitivity: -i48dBm

Transceive rate: 300 kbps

Hardware Version: SX1276[868/915/923Mhz]

OLED: 0.96 inch

Driver: SSD1306

Power Button (left):

• Long press: Powers the device on or off.

Reset Button (right):

• Single press: Resets the device.

User/Program Button (middle):

• Long press:

• Will signal the device to shutdown after 5 seconds.

• Single press:

• Changes the information page displayed on the device's screen.

• Double press:

• Sends an adhoc ping of the device's position to the network.

• Triple press:

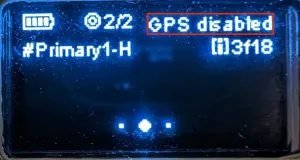

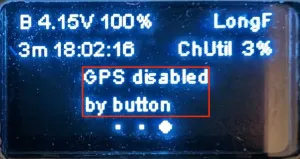

• Disables the device's GPS. Repeat to re-enable. (This will be indicated on both information screen pages on the device's display as shown below)

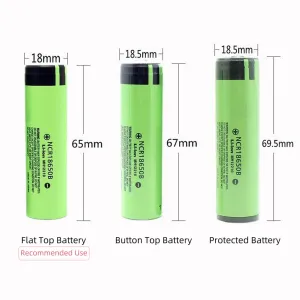

Support USB Micro/ 18650 battery holder [USB can power the battery]

Meshtastic

* Meshtastic Official Firmware

* Meshtastic Official Documentation

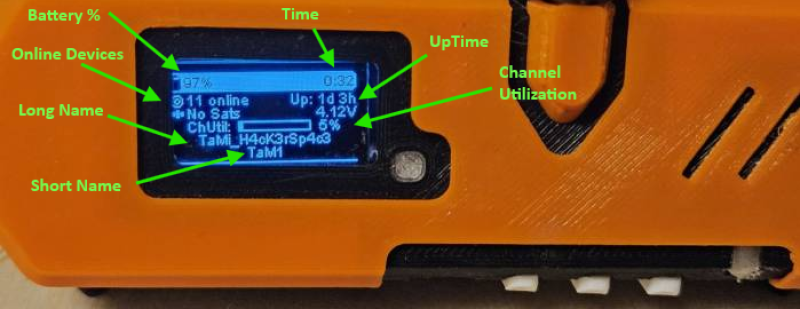

TAMI's node display showcasing thenode's Longname: TaMi_H4cK3rSp4c3 \ Shortname: TaMi

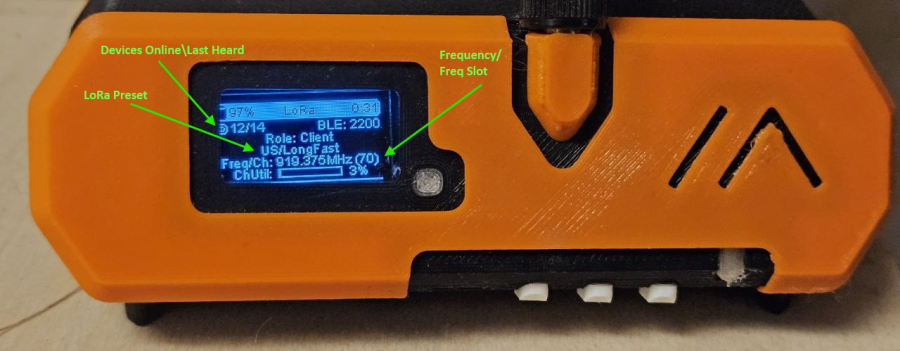

Configured LoRa Frequency Slot & Preset

Display of Last Heard Nodes

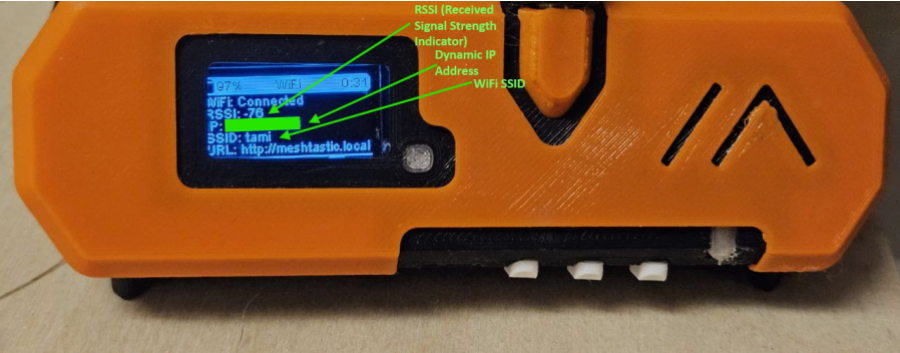

WiFi Connectivity information

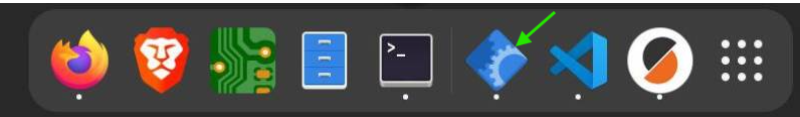

Connecting to Nodes' through MeshSense (On TAMI Fedora next to soldering station)

Or download MeshSense to your own endpoint and connect to TAMI's Node using TAMI's network

* MeshSense Website

* MeshSense Github Repository

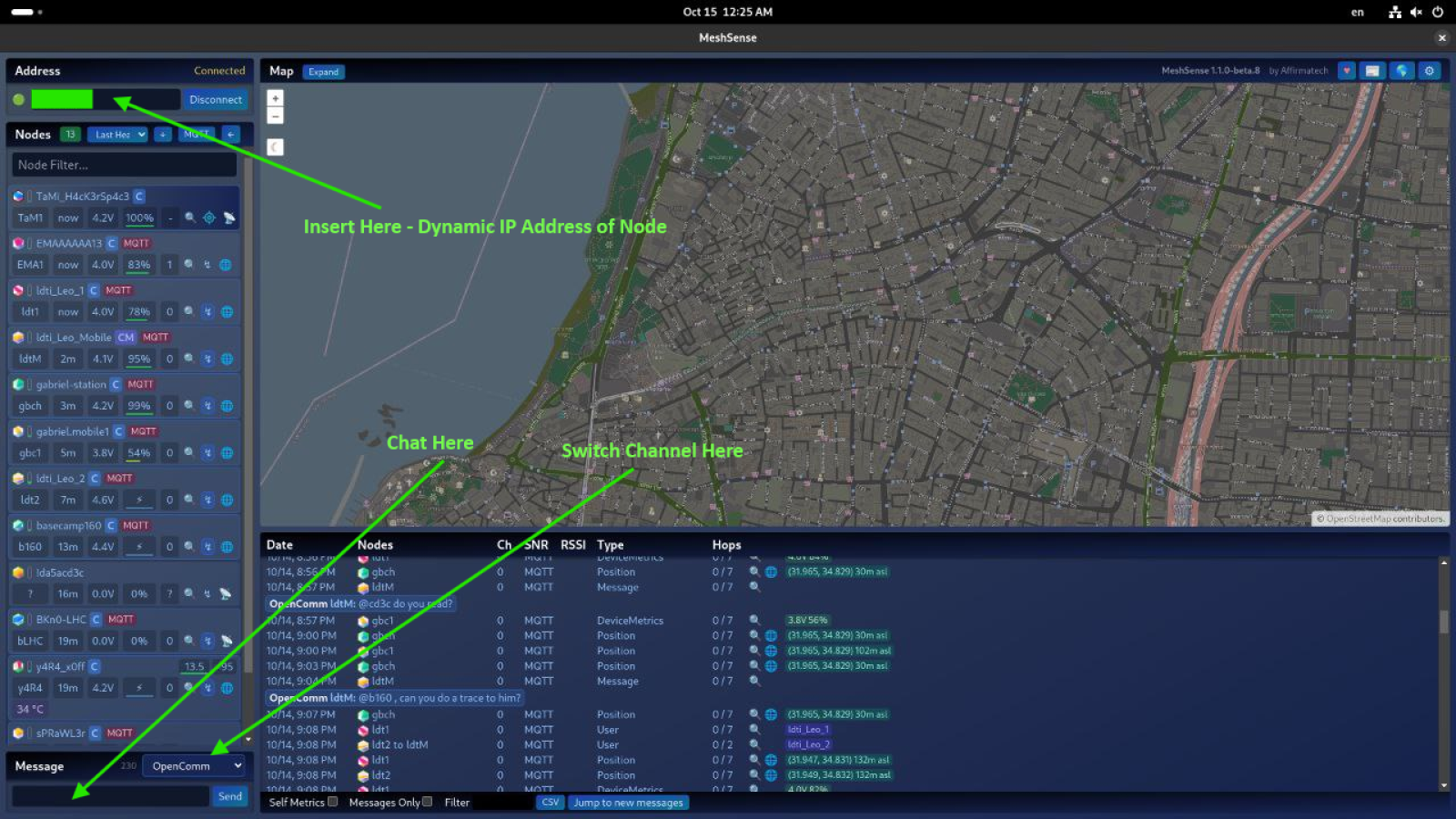

MeshSense Display, connecting through the Node's Dynamic IP Address.

Here you can chat using TaMi's Nodes with other nodes across the country.

* TAMI Meetups

* TAMI Meshtastic Workshop Project Wiki

* TAMI Meshtastic Workshop – Waiting List Form

* TAMI Meshtastic TG

* Meshtastic Alt IL Community TG

Look for the TaMi personal working with the node and Meshsense.

• Contact via 😈bak3n3k0
• Telegram: `Random`
• Email: `secops1@duck.com`

👉 TAMI Meshtastic Workshop – Meetup: November 2, 2025

  Disclaimer:
  Meshtastic configurations and deployment for this workshop are designed around the legal ranges and information published by the Ministry of Communications for LoRaWAN.
  However, as there has been no updated official guidance specific to LoRa in Israel for several years,
  the community and Israeli users are working with the best possible configurations within firmware limitations to remain aligned with the current amorphic legality.
  All information shared in this workshop—and within the community—is publicly available for anyone to research independently.
  The workshop itself will be ~85% hands-on, and each participant is solely responsible for their own use of Meshtastic.

  Participation in the Meshtastic community and activities is entirely voluntary. If these conditions do not meet your needs or interests, you are under no obligation to join or continue.
